Non-oriented hluav taws xob hlau (NOES) muaj siab permeability, siab magnetization saturation, tsis tshua muaj tub ntxhais poob, thiab tus nqi qis.

Cov khoom sib nqus ntawm cov hlau tsis muaj hluav taws xob zoo nyob ntawm cov ntsiab lus silicon, kev huv ntawm cov hlau, lub thickness ntawm cov ntawv hlau, thiab cov lis loj thiab kev ntxhib los mos ntawm qhov kawg lamination.

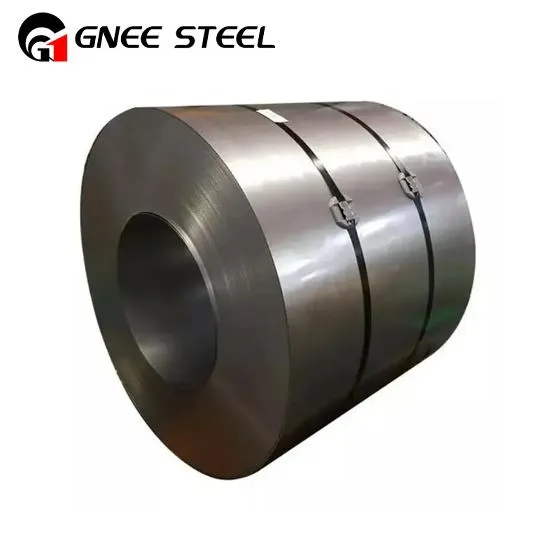

Non-oriented hluav taws xob steel, feem ntau hu ua tsis yog-grain-oriented hluav taws xob steellos yog yooj yim uas tsis yog-oriented steel, yog ib hom mos magnetic khoom siv nyob rau hauv kev tsim kho cov tshuab hluav taws xob thiab cov khoom siv. Nws yog ib qho tseem ceeb hauv kev tsim cov motors, generators, transformers, thiab lwm yam khoom siv electromagnetic uas yuav tsum tau muaj zog thiab tsis tshua muaj zog sib nqus.

Dimensions ntawm cov khoom

Muaj thickness	Muaj qhov dav dav	Sab hauv txoj kab uas hla
mm	mm	mm
0.15,0.20	950-1000	508±10
0.30 0.35 0.50 0.70 0.75 0.80 0.85	1000-1250	508±10

Dimensional thiab Shape Tolerances

Nominal thickness	Nominal thickness kam rau ua	Transverse thickness kam rau ua	Dav kam rau ua	Flatness	Camber hauv 2m
mm	mm	mm	mm	%	mm
0.15	±0.012	Tsawg dua lossis sib npaug rau 0.010	0~+1.5	Tsawg dua los yog sib npaug li 1.5	Tsawg dua los yog sib npaug rau 1.0
0.2	±0.012	Tsawg dua lossis sib npaug rau 0.010
0.3	±0.015	Tsawg dua lossis sib npaug rau 0.012
0.35	±0.015	Tsawg dua lossis sib npaug rau 0.012
0.5	±0.020	Tsawg dua lossis sib npaug rau 0.015
0.7	±0.030	Tsawg dua lossis sib npaug rau 0.025
0.75	±0.030	Tsawg dua lossis sib npaug rau 0.025
0.8	±0.040	Tsawg dua lossis sib npaug rau 0.030
0.85	±0.040	Tsawg dua lossis sib npaug rau 0.030

Nco tseg: a. Traverse thickness sib txawv yog hais txog qhov sib txawv thickness ntawm daim ntawv nruab nrab thiab 15mm ntawm ntug.

b.Thov sab laj rau peb yog tias koj muaj cov cai tshwj xeeb.

Non-oriented silicon hlau

Non oriented electrical steel

Tsis yogOriented Silicon hlauYam ntxwv

Magnetic Properties

Cov khoom sib nqus ntawm cov khoom yog tshwj xeeb los ntawm nws cov tub ntxhais uas tsis muaj qhov poob, siab permeability, thiab kev ua haujlwm zoo heev.

Thickness kam rau ua

Zoo thickness kam rau ua yog yus muaj los ntawm ib tug me me sib txawv nyob rau hauv thickness nyob rau hauv ib tug kev coj mus rau lub parallel mus rau cov kev taw qhia ntawm dov, ib tug me me sib txawv nyob rau hauv thickness nyob rau hauv ib tug kev taw qhia perpendicular mus rau cov kev taw qhia ntawm dov, thiab ib tug high lamination.

Cov khoom ua haujlwm

Cov khoom yog tsim rau xuas nrig ntaus thiab txiav nrog zoo heev dimension kam rau ua.

Rwb thaiv tsev txheej

Cov txheej txheej rwb thaiv tsev muaj cov xim sib txawv me me, zoo adhesiveness, thiab zoo heev tiv taus cua sov thiab corrosion nrog siab rwb thaiv tsev txheej. Muaj ntau ntau hom rwb thaiv tsev txheej muaj rau kev tsim khoom. Raws li cov txiaj ntsig kev xeem tau ua los ntawm cov koom haum soj ntsuam kev tshaj lij, cov ntsiab lus ntawm cov khoom phom sij ua raws li tag nrho cov kev cai lij choj thoob ntiaj teb thiab kev tiv thaiv ib puag ncig hauv tsev nrog rau EU RoHS thiab REACH cov cai.

Cov khoom siv

Cold rolled non oriented electrical steel

Ntim & Shipping

Cold rolled Non oriented silicon steel

GNEE Factory

Grain Non oriented silicon steel

Cov khoom tsim tawm

Grain Non oriented electrical steel

Cov duab Exhibition

Cold rolled Grain Non oriented silicon steel

Cov neeg tuaj xyuas Case

Cold rolled Grain Non oriented electrical steel

GNEE Teams

Cold rolled Non oriented steel

GNEE Steel

GNEE Hoobkas txais cov txheej txheem xim txheej txheem siab tshaj plaws thiab 150+ cov qauv luam tawm los muab peb cov neeg siv khoom nrog ntau yam kev cai tsim. Peb tuaj yeem tsim cov ntawv hlau profiled ntawm ntau yam duab thiab ntev raws li xav tau. Ntxiv mus, Peb muaj ntau txoj kev kho deg, xws li passivation, ntiv tes tiv thaiv, oiling thiab lwm yam. Peb cov khoom siv hlau yog dav siv hauv kev tsim kho, khoom siv hauv tsev, rooj tog zaum, kev lag luam tsheb, kev tshaj tawm board, whiteboard, thiab lwm yam.
